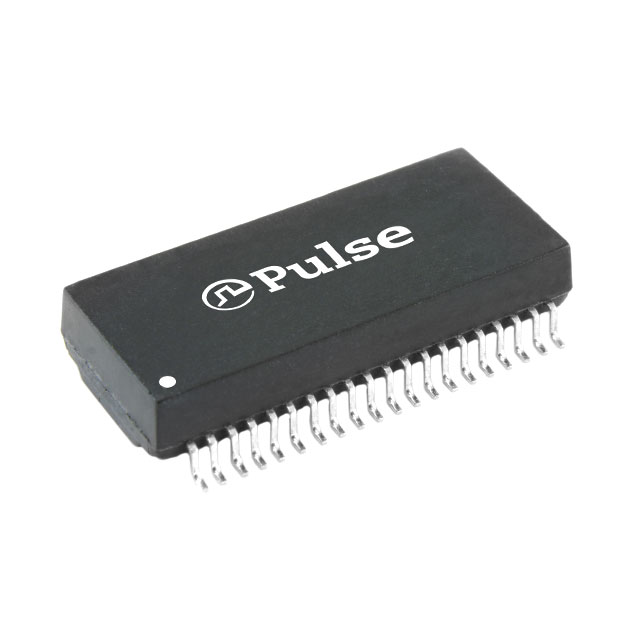

HX1344NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX1344NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX1344NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX1344NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 36 pcs | 54 pcs | |
|---|---|---|---|---|---|
| $2.318 | $1.76 | $1.714 | $1.575 | ||
| 108 pcs | 252 pcs | 504 pcs | 1008 pcs | ||
| $1.483 | $1.436 | $1.39 | $1.344 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX1344NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26831 pcs | Data sheet | HX1344NL Datasheet |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100 Base-T |
| Size / Dimension | 1.106" L x 0.480" W (28.10mm x 12.20mm) | Series | - |
| Packaging | Tube | Operating Temperature | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 350µH | Height - Seated (Max) | 0.225" (5.72mm) |
| Energy Time (E.T.) | - |
