HM5149NL

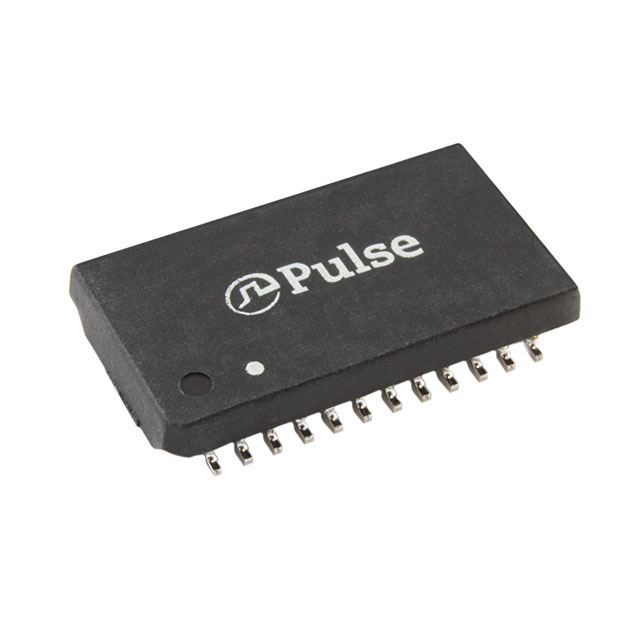

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HM5149NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HM5149NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HM5149NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.018 | $2.346 | $2.283 | $1.966 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.877 | $1.839 | $1.807 | $1.775 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HM5149NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18285 pcs | Data sheet | HM5149NL Datasheet |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 0.700" L x 0.390" W (17.78mm x 9.91mm) | Series | - |
| Packaging | Tube | Other Names | 553-3327 553-3327-5 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 360µH |
| Height - Seated (Max) | 0.126" (3.20mm) | Energy Time (E.T.) | - |
