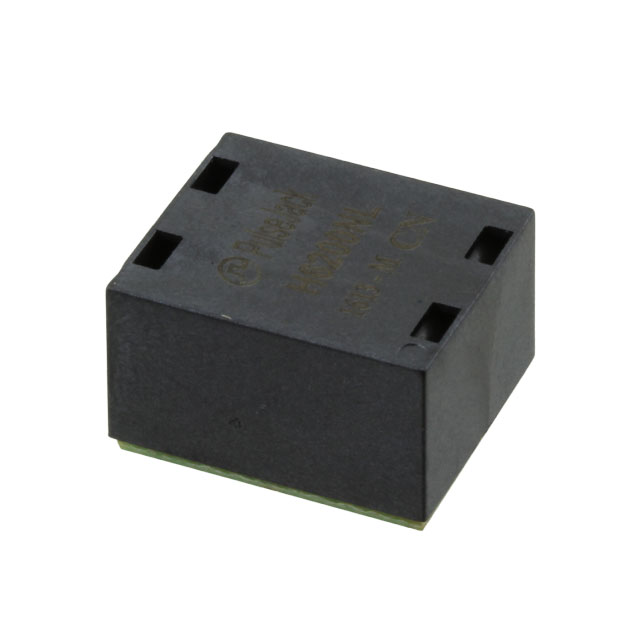

H6200NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H6200NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H6200NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H6200NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX/RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 84 pcs | |
|---|---|---|---|---|---|
| $5.278 | $3.90 | $3.60 | $3.48 | ||
| 168 pcs | 252 pcs | 504 pcs | 1008 pcs | ||
| $3.384 | $3.336 | $3.30 | $3.24 | ||
- Product parameter
Product parameter
| Part Number | H6200NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX/RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10584 pcs | Data sheet | |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 0.580" L x 0.680" W (14.73mm x 17.27mm) | Series | - |
| Packaging | Tube | Other Names | 553-3201-5 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 120µH, 350µH |
| Height - Seated (Max) | 0.440" (11.18mm) | Energy Time (E.T.) | - |
