H1302NL

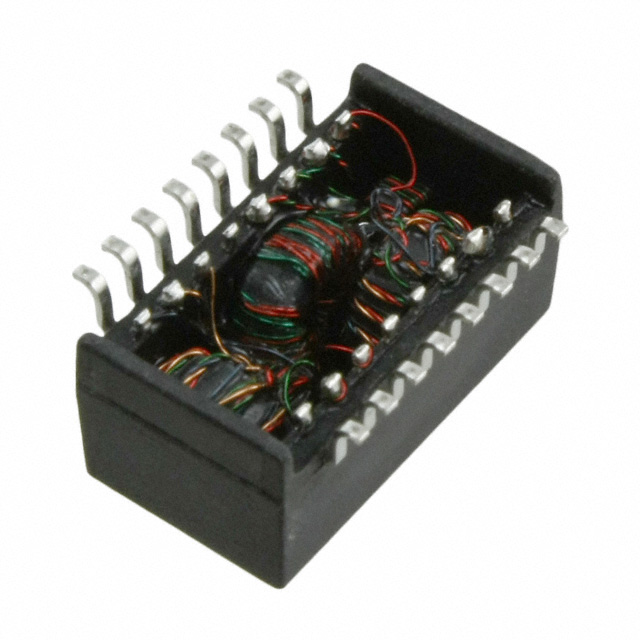

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1302NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1302NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1302NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MAGNETIC 1PORT 1:1 10/100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.906 | $1.544 | $1.248 | $1.17 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.117 | $1.084 | $1.051 | $1.019 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1302NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MAGNETIC 1PORT 1:1 10/100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36791 pcs | Data sheet | 10/100Base-T Single Port SMD Magnetics |
| Category | Transformers | Weight | 0.03 oz (0.85g) |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) | Series | - |
| Packaging | Tube | Other Names | 553-1608-5 H1302NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.241" (6.12mm) | Energy Time (E.T.) | - |
