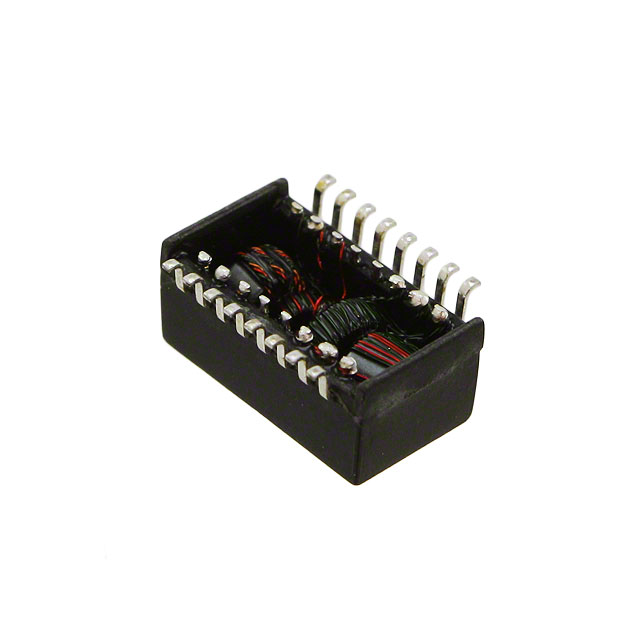

H1121NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1121NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1121NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1121NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MAGNT 1PORT 1:1.414 10/100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1121NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MAGNT 1PORT 1:1.414 10/100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5794 pcs | Data sheet | 10/100Base-T Single Port SMD Magnetics |
| Category | Transformers | Weight | 0.03 oz (0.85g) |
| Turns Ratio - Primary:Secondary | 1:1.414 Transmitter, 1:1 Receiver | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) | Series | - |
| Packaging | Tube | Other Names | 553-2121 H1121NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | - | Height - Seated (Max) | 0.245" (6.22mm) |
| Energy Time (E.T.) | - |
