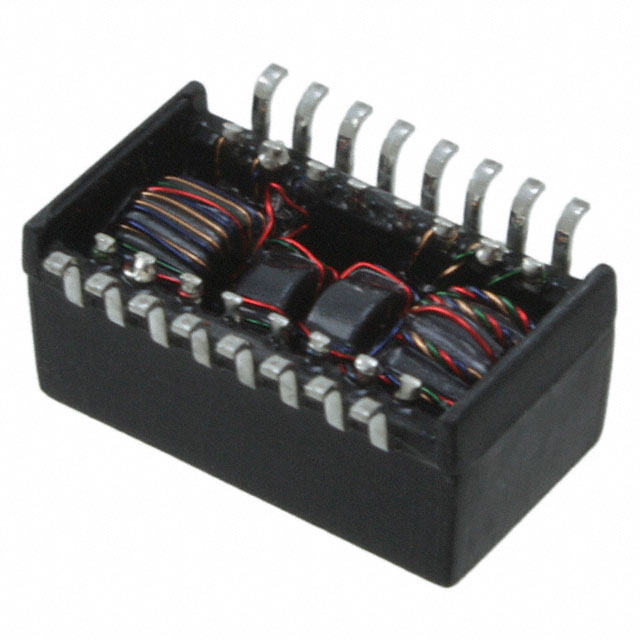

H1100NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1100NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1100NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1100NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MAGNETIC 1PORT 2:1 10/100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.747 | $1.416 | $1.144 | $1.072 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.024 | $0.994 | $0.964 | $0.934 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1100NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MAGNETIC 1PORT 2:1 10/100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40712 pcs | Data sheet | H1100NL Drawing Spec10/100Base-T Single Port SMD Magnetics |
| Category | Transformers | Weight | 0.03 oz (0.85g) |
| Turns Ratio - Primary:Secondary | 2:1 Transmitter, 1:1 Receiver | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) | Series | - |
| Packaging | Tube | Other Names | 553-1841-5 H1100NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.245" (6.22mm) | Energy Time (E.T.) | - |
