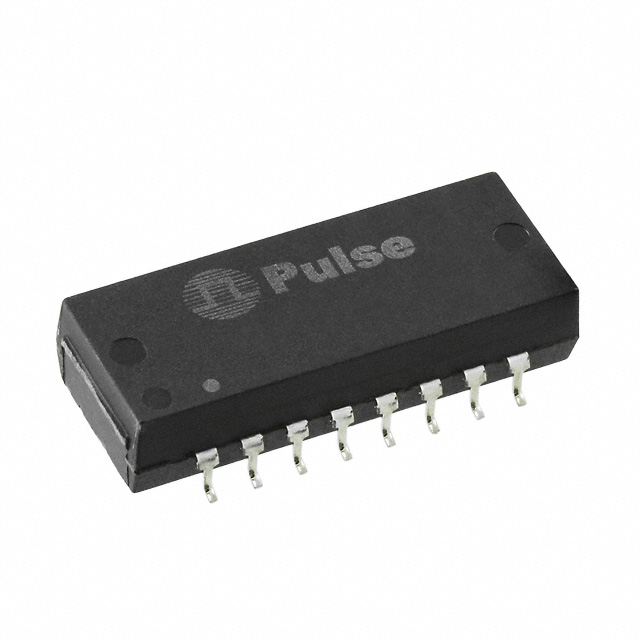

H1086NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1086NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H1086NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H1086NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMR MODULE 1PORT 1:1 10/100 |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $2.089 | $1.588 | $1.546 | $1.421 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $1.337 | $1.295 | $1.254 | $1.212 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H1086NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMR MODULE 1PORT 1:1 10/100 | Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant |
| Quantity Available | 28776 pcs | Data sheet | 10/100 Base-T Single Port |
| Category | Transformers | Weight | 0.11 oz (3.13g) |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 1.000" L x 0.390" W (25.40mm x 9.91mm) | Series | - |
| Packaging | Tube | Other Names | 553-1624-5 H1086NL-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.245" (6.22mm) | Energy Time (E.T.) | - |
