Home > Products > RF/IF and RFID > Balun > CX2040LNL

CX2040LNL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CX2040LNL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CX2040LNL
Manufacturer	Pulse Electronics Corporation
Description	BALUN 1MHZ-500MHZ 75/75 5SMD MOD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	300 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 75592 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.951	$0.761	$0.618	$0.602	$0.586
	$0.57	$0.566	$0.501	$0.46

Product parameter
Data sheet

Product parameter

Part Number	CX2040LNL	Manufacturer	Pulse Electronics Corporation
Description	BALUN 1MHZ-500MHZ 75/75 5SMD MOD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75592 pcs	Data sheet	CX2040LNL Drawing CX20xx RF Transformer Datasheet
Category	RF/IF and RFID	Series	-
Return Loss (Min)	-	Phase Difference	-
Packaging	Tray	Package / Case	5-SMD Module
Other Names	553-3186	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss (Max)	0.9dB
Impedance - Unbalanced/Balanced	75 / 75 Ohm	Frequency Range	1MHz ~ 500MHz
Detailed Description	RF Balun 1MHz ~ 500MHz 75 / 75 Ohm 5-SMD Module

Related products
Related news

Related products

CX2044LNLT Image

Part#:~~CX2044LNLT~~
Manufacturers:~~Pulse Electronics Corporation~~
Description:~~BALUN 5MHZ-500MHZ 50/50 5SMD~~
In Stock:~~62053~~

~~$0.618/pcs~~RFQ

Part#:~~CX2044~~
Manufacturers:~~Xeltek~~
Description:~~SOCKET ADAPTER 44PLCC SUPERPRO5K~~
In Stock:~~574~~

~~$67.871/pcs~~RFQ

Part#:~~CX2041NL~~
Manufacturers:~~Pulse Electronics Corporation~~
Description:~~BALUN 50KHZ-450MHZ 75/75 5SMD~~
In Stock:~~79211~~

~~$0.478/pcs~~RFQ

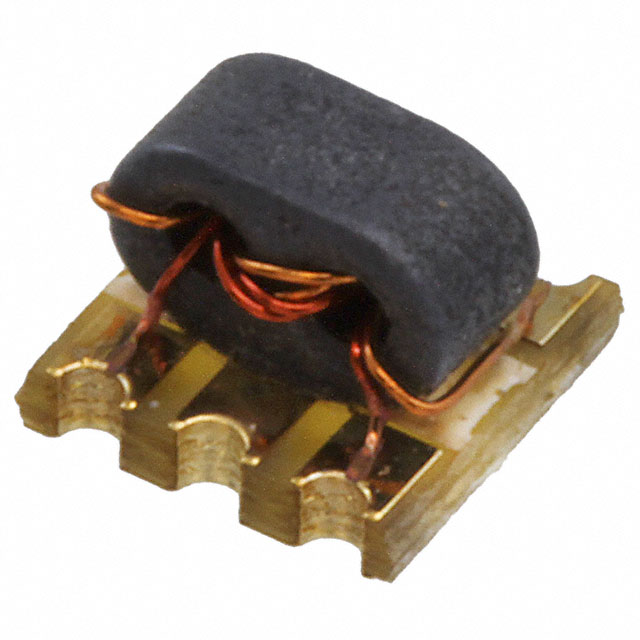

CX2040LNLT Image
