8MM-11-0004-02-279191

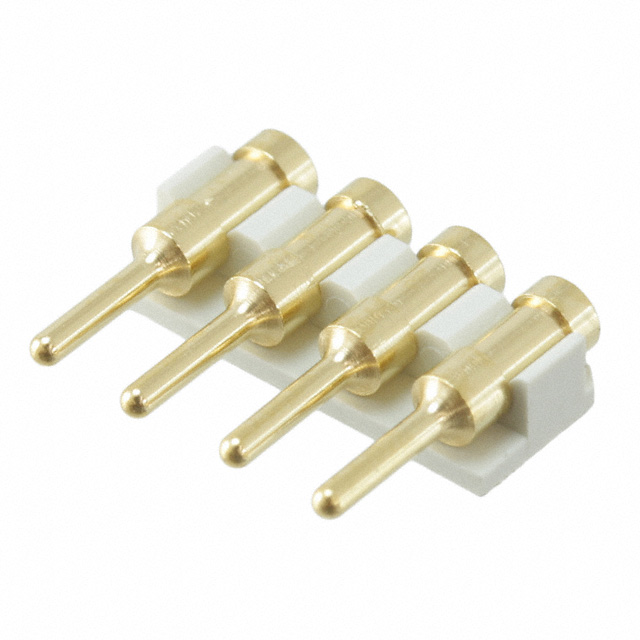

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8MM-11-0004-02-279191 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8MM-11-0004-02-279191 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8MM-11-0004-02-279191 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HDR 4POS 2.54MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2300 pcs | ||||
|---|---|---|---|---|---|
| $0.262 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8MM-11-0004-02-279191 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 4POS 2.54MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84844 pcs | Data sheet | 8FM-yy-yyyy-02-278 Flyer |
| Category | Connectors, Interconnects | Voltage Rating | 150VDC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 8mm |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 1212-1384-2 8MM11000402279191 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.096" (2.44mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
