892-70-014-20-001101

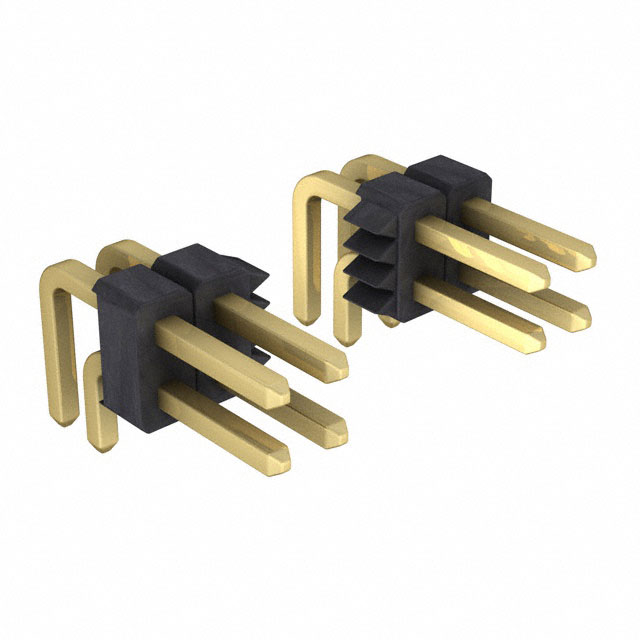

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 892-70-014-20-001101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 892-70-014-20-001101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 892-70-014-20-001101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HDR 14POS 2.54MM T/H R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 900 pcs | ||||
|---|---|---|---|---|---|
| $0.187 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 892-70-014-20-001101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 14POS 2.54MM T/H R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115171 pcs | Data sheet | 892-xx-yyy-20-00z101 |
| Category | Connectors, Interconnects | Voltage Rating | 150VDC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 892 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.236" (6.00mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
