805-83-009-10-012101

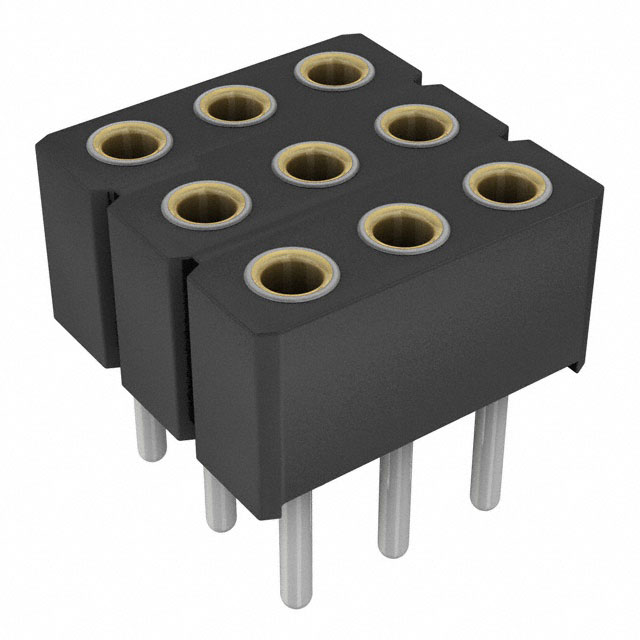

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 805-83-009-10-012101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 805-83-009-10-012101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 805-83-009-10-012101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | PCB CONN SOLDER TAIL ST 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | ||||
|---|---|---|---|---|---|
| $0.297 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 805-83-009-10-012101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | PCB CONN SOLDER TAIL ST 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75935 pcs | Data sheet | 805-xx-yyy-10-012101 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 805 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 9 Position Socket Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Socket | Applications | - |
