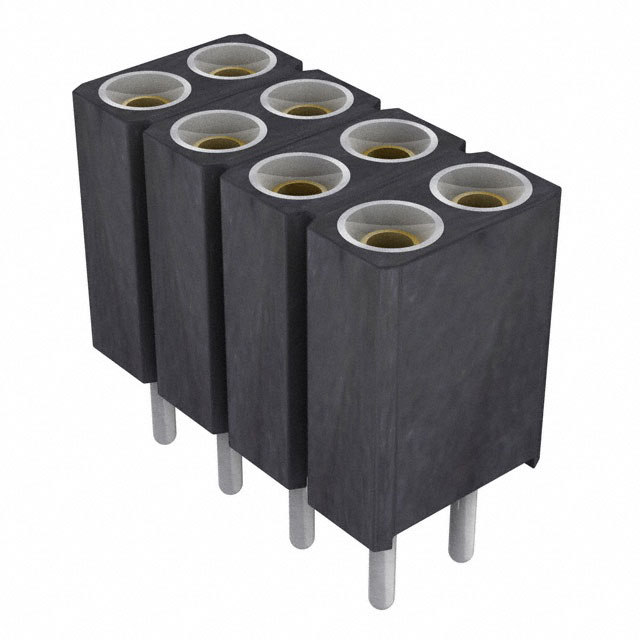

803-87-008-10-001101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 803-87-008-10-001101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 803-87-008-10-001101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 803-87-008-10-001101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | SOCKET 7 MM SOLDER TAIL DOUBLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.275 | $0.257 | $0.197 | $0.171 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.141 | $0.124 | $0.116 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 803-87-008-10-001101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | SOCKET 7 MM SOLDER TAIL DOUBLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 195490 pcs | Data sheet | 803-yy-yyy-10-001101 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 803 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 1212-1231 8038700810001100 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Socket Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Socket |
| Applications | - |
