802-V3-004-12-002101

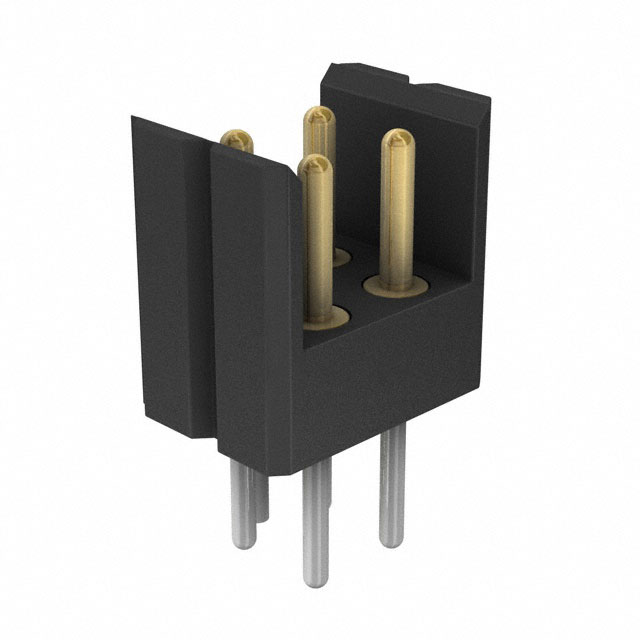

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 802-V3-004-12-002101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 802-V3-004-12-002101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 802-V3-004-12-002101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HDR 4POS 0.100 T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 860 pcs | ||||
|---|---|---|---|---|---|
| $0.183 | |||||
- Product parameter
Product parameter
| Part Number | 802-V3-004-12-002101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 4POS 0.100 T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107317 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 150VDC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 802 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.386" (9.80mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.272" (6.91mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.141" (3.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
