800-80-037-20-101101

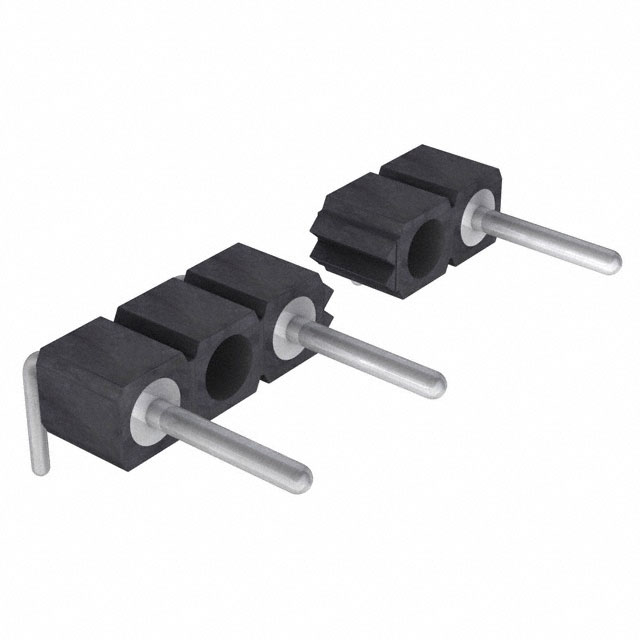

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 800-80-037-20-101101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 800-80-037-20-101101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 800-80-037-20-101101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HDR 19POS 0.200 T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 240 pcs | ||||
|---|---|---|---|---|---|
| $0.775 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 800-80-037-20-101101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 19POS 0.200 T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39124 pcs | Data sheet | 800-xx-yyy-20-101101 |
| Category | Connectors, Interconnects | Voltage Rating | 150VDC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 800 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 19 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 19 position 0.200" (5.08mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.195" (4.95mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
