CM600DX-24S1

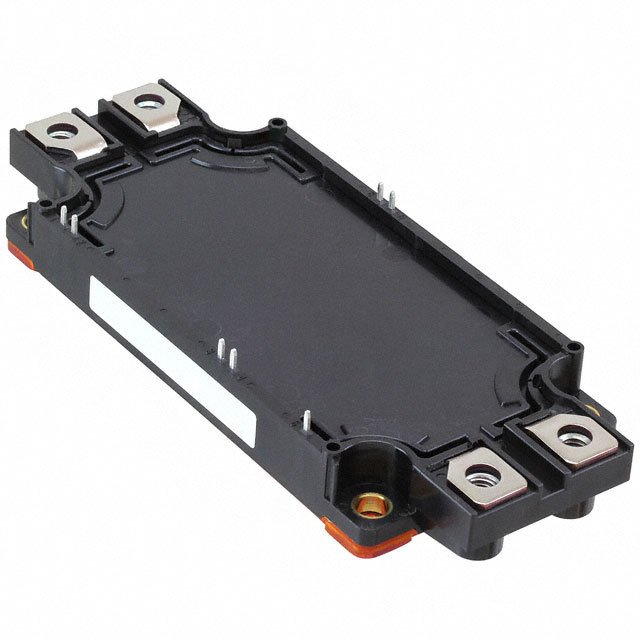

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM600DX-24S1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM600DX-24S1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM600DX-24S1 |
|---|---|
| Manufacturer | Powerex, Inc. |
| Description | IGBT MOD NX 600A 1200V DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM600DX-24S1 | Manufacturer | Powerex, Inc. |
|---|---|---|---|
| Description | IGBT MOD NX 600A 1200V DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5392 pcs | Data sheet | CM600DX-24S1 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 600A | Supplier Device Package | Module |
| Series | - | Power - Max | 3330W |
| Package / Case | Module | Other Names | 835-1153 |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | Yes |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 50nF @ 10V | Input | Standard |
| IGBT Type | - | Detailed Description | IGBT Module Half Bridge 1200V 600A 3330W Module |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 600A |
| Configuration | Half Bridge |
