CM200DY-12H

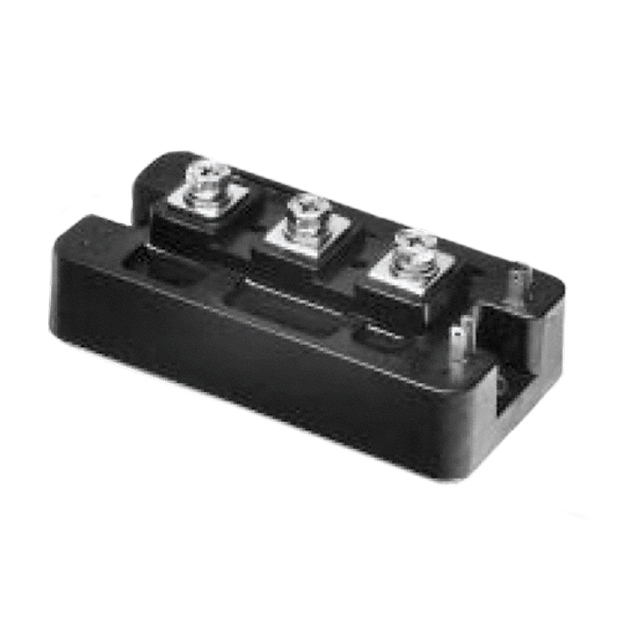

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM200DY-12H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM200DY-12H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM200DY-12H |
|---|---|
| Manufacturer | Powerex, Inc. |
| Description | IGBT MOD DUAL 600V 200A H SER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | CM200DY-12H | Manufacturer | Powerex, Inc. |
|---|---|---|---|
| Description | IGBT MOD DUAL 600V 200A H SER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5418 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 200A | Supplier Device Package | Module |
| Series | IGBTMOD™ | Power - Max | 780W |
| Package / Case | Module | Other Names | 835-1084 CM200DY-12H-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Input Capacitance (Cies) @ Vce | 20nF @ 10V |
| Input | Standard | IGBT Type | - |
| Detailed Description | IGBT Module Half Bridge 600V 200A 780W Chassis Mount Module | Current - Collector Cutoff (Max) | 1mA |
| Current - Collector (Ic) (Max) | 200A | Configuration | Half Bridge |
