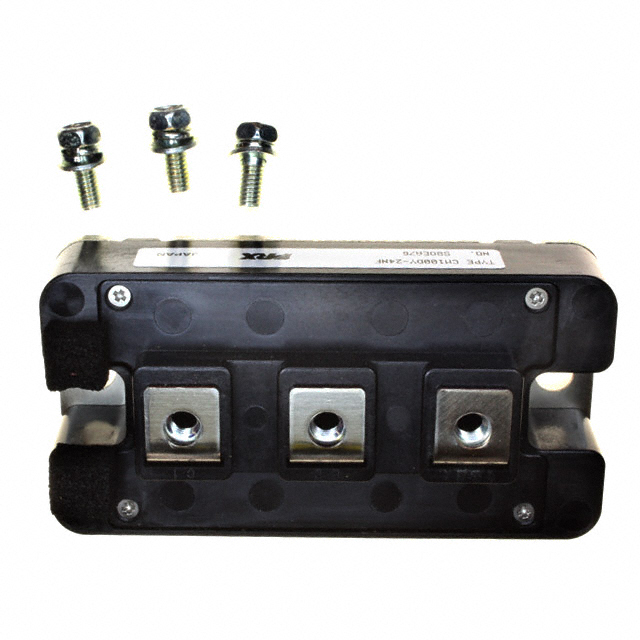

CM100DY-24NF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM100DY-24NF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM100DY-24NF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM100DY-24NF |
|---|---|
| Manufacturer | Powerex, Inc. |
| Description | IGBT MOD DUAL 1200V 100A NF SER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM100DY-24NF | Manufacturer | Powerex, Inc. |
|---|---|---|---|
| Description | IGBT MOD DUAL 1200V 100A NF SER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4189 pcs | Data sheet | CM100DY-24NF |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 100A | Supplier Device Package | Module |
| Series | IGBTMOD™ | Power - Max | 650W |
| Package / Case | Module | Other Names | 835-1006 CM100DY24NF |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 23nF @ 10V |
| Input | Standard | IGBT Type | - |
| Detailed Description | IGBT Module Half Bridge 1200V 100A 650W Chassis Mount Module | Current - Collector Cutoff (Max) | 1mA |
| Current - Collector (Ic) (Max) | 100A | Configuration | Half Bridge |
