Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > TNY266GN-TL

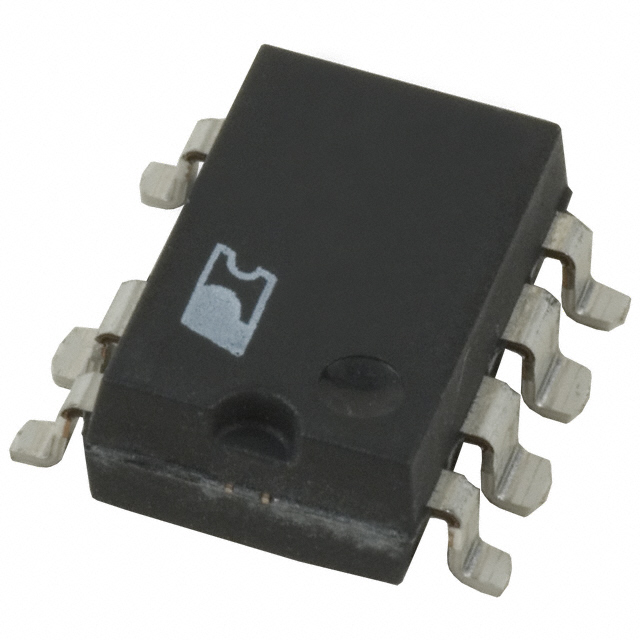

TNY266GN-TL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TNY266GN-TL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TNY266GN-TL
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT OTP OCP HV 8SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 72692 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs
Reference Price (In US Dollars)	$0.318	$0.296	$0.285	$0.274

Product parameter
Data sheet

Product parameter

Part Number	TNY266GN-TL	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT OTP OCP HV 8SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72692 pcs	Data sheet	TNY263-68
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Flyback
Supplier Device Package	SMD-8B	Series	TinySwitch®-II
Power (Watts)	15W	Packaging	Tape & Reel (TR)
Package / Case	8-SMD (7 Leads), Gull Wing	Output Isolation	Isolated
Other Names	596-1050-2 TNY266GNTL	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	132kHz	Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit
Duty Cycle	65%	Detailed Description	Converter Offline Flyback Topology 132kHz SMD-8B
Control Features	EN
