Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > TFS760HG

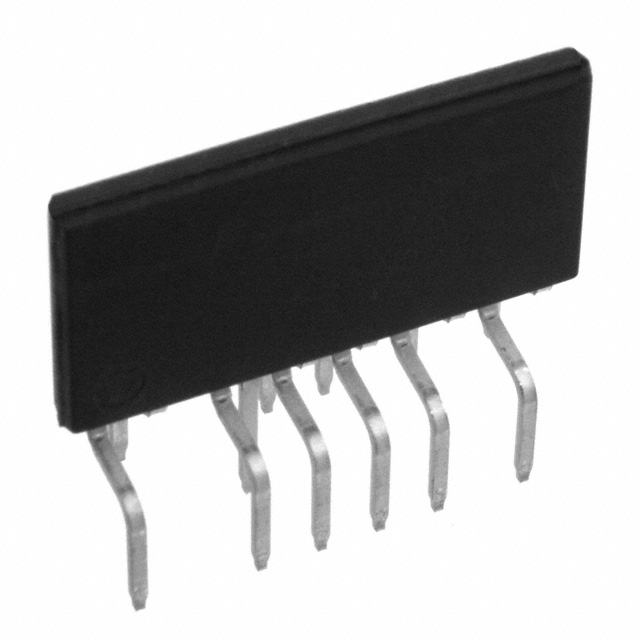

TFS760HG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFS760HG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TFS760HG
Manufacturer	Power Integrations
Description	IC PWR SUPPLY CTLR 305W ESIP-16
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15952 pcs
Reference Price (In US Dollars)	90 pcs
Reference Price (In US Dollars)	$2.175

Product parameter
Data sheet

Product parameter

Part Number	TFS760HG	Manufacturer	Power Integrations
Description	IC PWR SUPPLY CTLR 305W ESIP-16	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15952 pcs	Data sheet	TFS757-764HG
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	11.1 V ~ 13.4 V
Voltage - Start Up	12.1V	Voltage - Breakdown	530V, 725V
Topology	Flyback, Forward	Supplier Device Package	16-eSIPB
Series	HiperTFS®	Power (Watts)	305W
Packaging	Tube	Package / Case	16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Output Isolation	Isolated	Other Names	596-1393
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	66kHz	Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit
Duty Cycle	70%	Detailed Description	Converter Offline Flyback, Forward Topology 66kHz 16-eSIPB
Control Features	EN
