Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > LQA30A300C

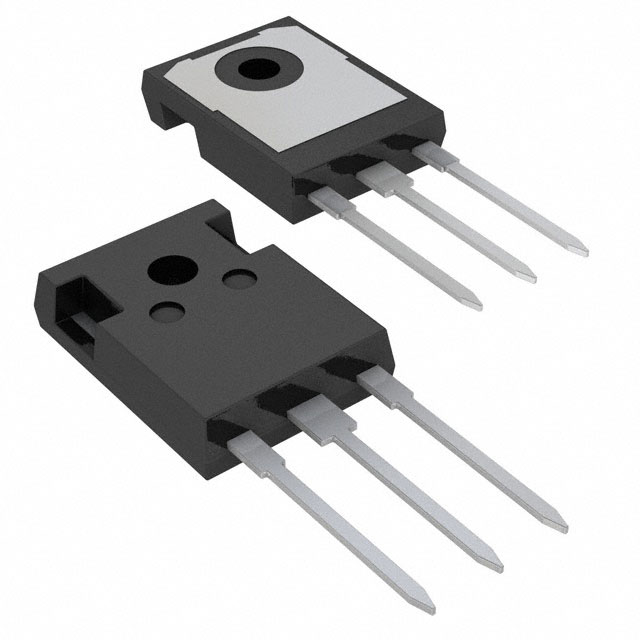

LQA30A300C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LQA30A300C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LQA30A300C
Manufacturer	Power Integrations
Description	DIODE ARRAY SCHOTTKY 300V TO247
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 51959 pcs
Reference Price (In US Dollars)	1 pcs	30 pcs	120 pcs	510 pcs	1020 pcs
Reference Price (In US Dollars)	$1.327	$1.067	$0.972	$0.787	$0.664

Product parameter
Data sheet

Product parameter

Part Number	LQA30A300C	Manufacturer	Power Integrations
Description	DIODE ARRAY SCHOTTKY 300V TO247	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51959 pcs	Data sheet	LQA30A300C
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.9V @ 15A
Voltage - DC Reverse (Vr) (Max)	300V	Supplier Device Package	TO-247AD
Speed	Fast Recovery = 200mA (Io)	Series	Qspeed™
Reverse Recovery Time (trr)	13ns	Packaging	Tube
Package / Case	TO-247-3	Other Names	596-1365-5
Operating Temperature - Junction	150°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 300V 15A Through Hole TO-247-3
Current - Reverse Leakage @ Vr	25µA @ 300V	Current - Average Rectified (Io) (per Diode)	15A
