Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > LNK606GG-TL

LNK606GG-TL

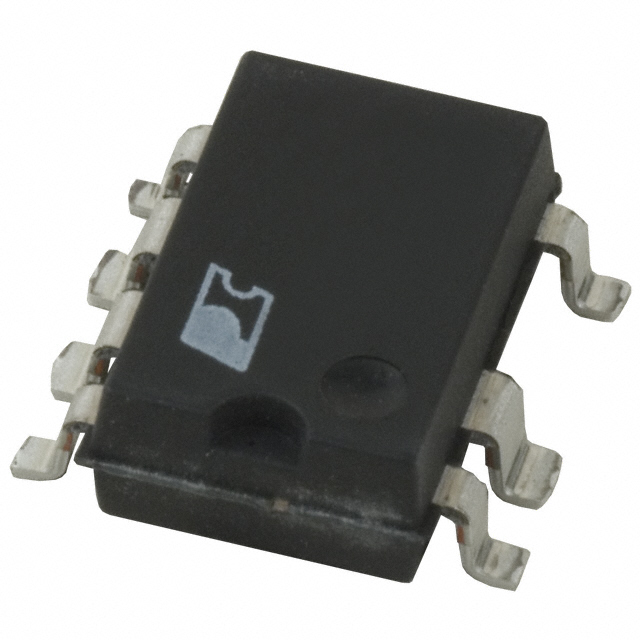

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LNK606GG-TL with confidence from Components-World.HK, 1 Year Warranty

Dowload LNK606GG-TL Details in PDF

Request a Quote

Part Number	LNK606GG-TL
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT CV/CC HV 8SOIC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 88777 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs
Reference Price (In US Dollars)	$0.302	$0.281	$0.271	$0.26

Product parameter
Data sheet

Product parameter

Part Number	LNK606GG-TL	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT CV/CC HV 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88777 pcs	Data sheet	LNK603-606/613-616
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Flyback
Supplier Device Package	SMD-8C	Series	LinkSwitch®-II
Power (Watts)	6.1W	Packaging	Tape & Reel (TR)
Package / Case	8-SMD (7 Leads), Gull Wing	Output Isolation	Isolated
Other Names	596-1726-2 LNK606GG-TL-ND	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	Up to 85kHz
Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit	Duty Cycle	55%
Detailed Description	Converter Offline Flyback Topology Up to 85kHz SMD-8C	Control Features	-
