Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > LNK364DN-TL

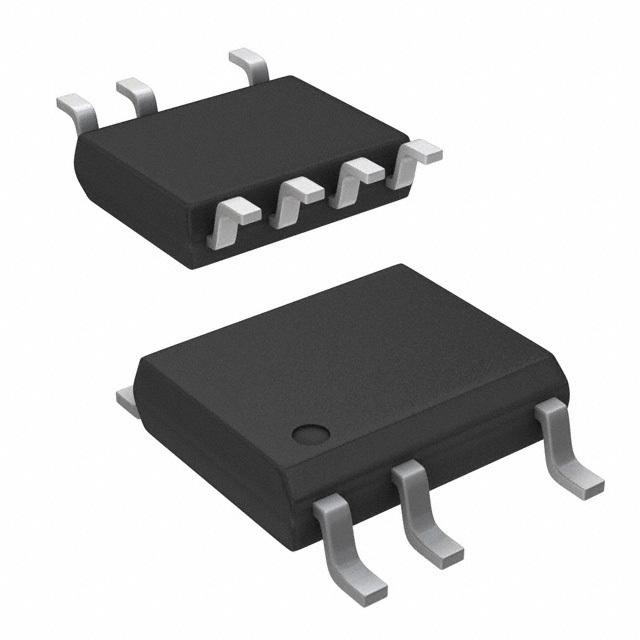

LNK364DN-TL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LNK364DN-TL with confidence from Components-World.HK, 1 Year Warranty

Dowload LNK364DN-TL Details in PDF

Request a Quote

Part Number	LNK364DN-TL
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT HV 8SOIC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 104407 pcs
Reference Price (In US Dollars)	2500 pcs	5000 pcs	12500 pcs
Reference Price (In US Dollars)	$0.233	$0.222	$0.213

Product parameter
Data sheet

Product parameter

Part Number	LNK364DN-TL	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT HV 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	104407 pcs	Data sheet	LNK362-64
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Flyback
Supplier Device Package	SO-8C	Series	LinkSwitch®-XT
Power (Watts)	9W	Packaging	Tape & Reel (TR)
Package / Case	8-SOIC (0.154", 3.90mm Width), 7 Leads	Output Isolation	Isolated
Other Names	596-1134-2	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	132kHz
Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit	Duty Cycle	60%
Detailed Description	Converter Offline Flyback Topology 132kHz SO-8C	Control Features	-
