Home > Products > Integrated Circuits (ICs) > PMIC - Gate Drivers > 2SC0535T2G0-33

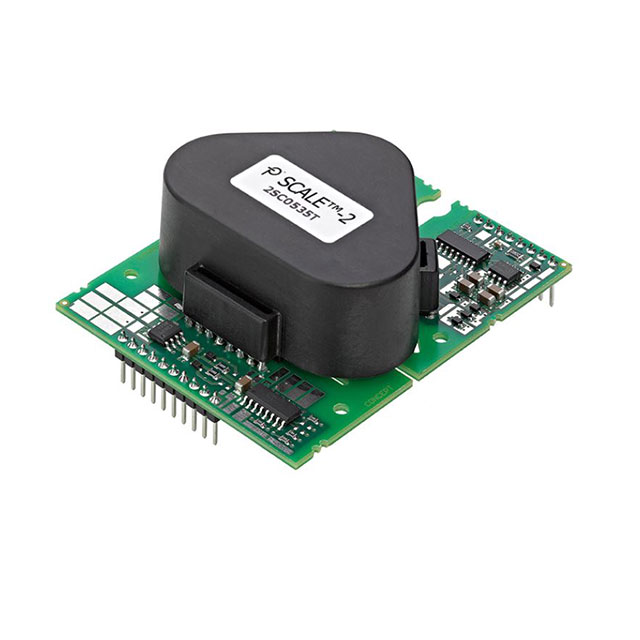

2SC0535T2G0-33

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC0535T2G0-33 with confidence from Components-World.HK, 1 Year Warranty

Dowload 2SC0535T2G0-33 Details in PDF

Request a Quote

Part Number	2SC0535T2G0-33
Manufacturer	Power Integrations
Description	IC DUAL GATE DRIVER 35A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 590 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	40 pcs
Reference Price (In US Dollars)	$70.268	$64.644	$56.213

Product parameter
Data sheet

Product parameter

Part Number	2SC0535T2G0-33	Manufacturer	Power Integrations
Description	IC DUAL GATE DRIVER 35A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	590 pcs	Data sheet	2SC0535T2G0-33
Category	Integrated Circuits (ICs)	Voltage - Supply	14.5 V ~ 15.5 V
Supplier Device Package	Module	Series	SCALE™-2
Rise / Fall Time (Typ)	20ns, 25ns	Packaging	Tray
Package / Case	Module	Other Names	1810-1030
Operating Temperature	-55°C ~ 85°C (TA)	Number of Drivers	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Logic Voltage - VIL, VIH	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	-
High Side Voltage - Max (Bootstrap)	3300V	Gate Type	IGBT
Driven Configuration	High-Side or Low-Side	Detailed Description	High-Side or Low-Side Gate Driver IC Module
Current - Peak Output (Source, Sink)	35A, 35A	Channel Type	Independent
