1SP0335V2M1-45

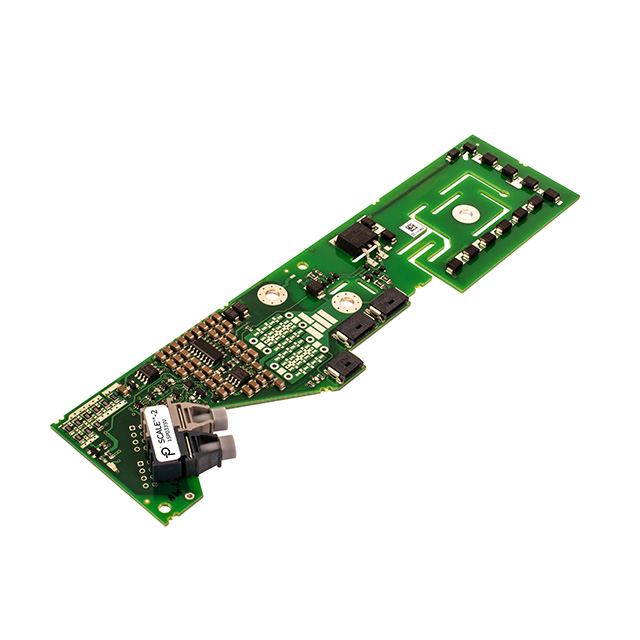

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1SP0335V2M1-45 with confidence from Components-World.HK, 1 Year Warranty
Dowload 1SP0335V2M1-45 Details in PDFSee Product Specifications for product details.
Buy 1SP0335V2M1-45 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1SP0335V2M1-45 |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC SINGLE GATE DRIVER 35A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $71.186 | $67.751 | $65.296 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1SP0335V2M1-45 | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | IC SINGLE GATE DRIVER 35A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 574 pcs | Data sheet | 1SP0335x2xx-45 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 23.5 V ~ 26.5 V |
| Supplier Device Package | Module | Series | SCALE™-2 |
| Rise / Fall Time (Typ) | 9ns, 30ns | Packaging | Bulk |
| Package / Case | Module | Other Names | 1810-1010 |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Drivers | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | - |
| High Side Voltage - Max (Bootstrap) | 4500V | Gate Type | IGBT |
| Driven Configuration | High-Side or Low-Side | Detailed Description | High-Side or Low-Side Gate Driver IC Module |
| Current - Peak Output (Source, Sink) | 35A, 35A | Channel Type | Single |
