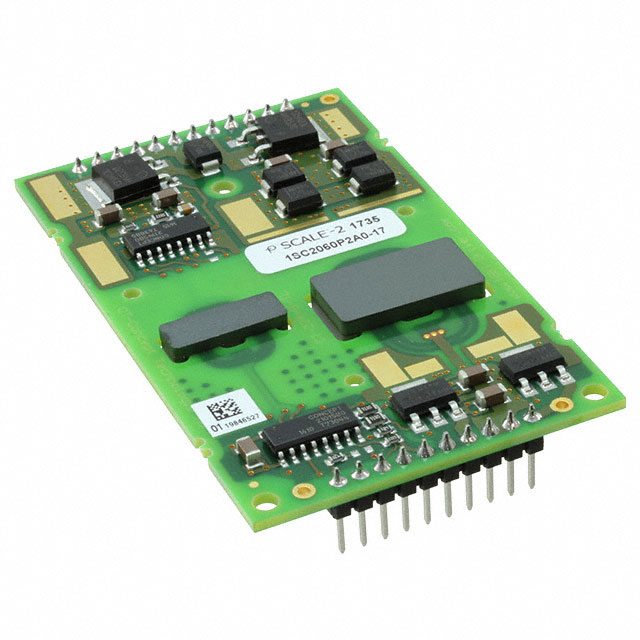

1SC2060P2A0-17
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1SC2060P2A0-17 with confidence from Components-World.HK, 1 Year Warranty
Dowload 1SC2060P2A0-17 Details in PDFSee Product Specifications for product details.
Buy 1SC2060P2A0-17 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1SC2060P2A0-17 |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC SINGLE GATE DRIVER 60A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $54.927 | $48.334 | $42.033 | $32.709 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1SC2060P2A0-17 | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | IC SINGLE GATE DRIVER 60A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 977 pcs | Data sheet | 1SC2060P2Ax-17 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 14.5 V ~ 15.5 V |
| Supplier Device Package | Module | Series | SCALE™-2 |
| Rise / Fall Time (Typ) | 10ns, 15ns | Packaging | Bulk |
| Package / Case | Module | Other Names | 1810-1006 |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Drivers | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | - |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | Driven Configuration | High-Side or Low-Side |
| Detailed Description | High-Side or Low-Side Gate Driver IC Module | Current - Peak Output (Source, Sink) | 60A, 60A |
| Channel Type | Single |
