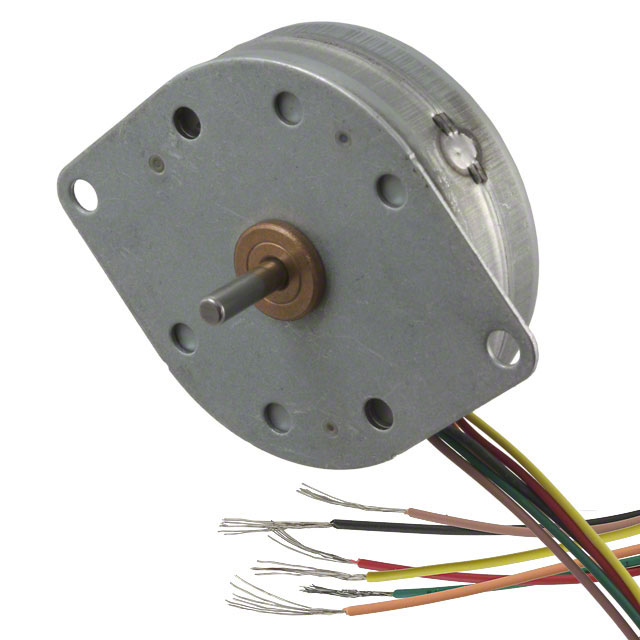

42S048D2U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 42S048D2U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 42S048D2U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 42S048D2U |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM UNIPOLAR 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $7.937 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 42S048D2U | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM UNIPOLAR 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3850 pcs | Data sheet | 42S048D Spec.42S Series Wiring DiagramCanStack Motor Part Numbering |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.193 lb (87.54g) |
| Voltage - Rated | 12VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 6.3 / 44.5 | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 1.650" Dia (42.00mm) | Series | 42S |
| Rotor Inertia | 9.5gcm² | Other Names | 403-1011 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.950" (49.48mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Shaft and Bearing | 0.450" (11.43mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.118" (3.00mm) | Detailed Description | Unipolar Stepper Motor 160mA 12VDC |
| Current Rating | 160mA | Coil Type | Unipolar |
| Coil Resistance | 75 Ohms | Approvals | - |
| Accuracy | ±15% |
