5056

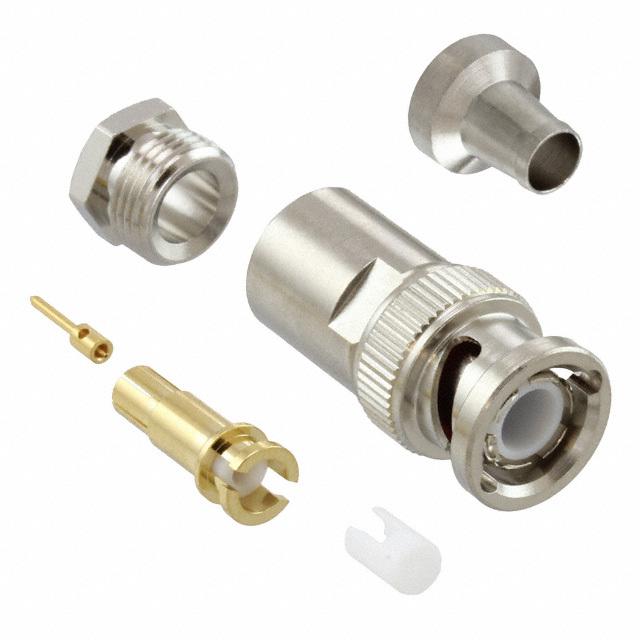

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5056 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5056 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5056 |
|---|---|
| Manufacturer | Pomona Electronics |
| Description | CONN BNC TRIAX PLUG STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $12.062 | $11.459 | $10.856 | $10.373 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5056 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX PLUG STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3172 pcs | Data sheet | 5056 |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | 501-1621 5056-ND |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Cycles | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 8 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 3 Insulators, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 500MHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Triaxial Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | BNC, Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | Belden 9222 |
| Body Material | Brass | Body Finish | Nickel |
