3534

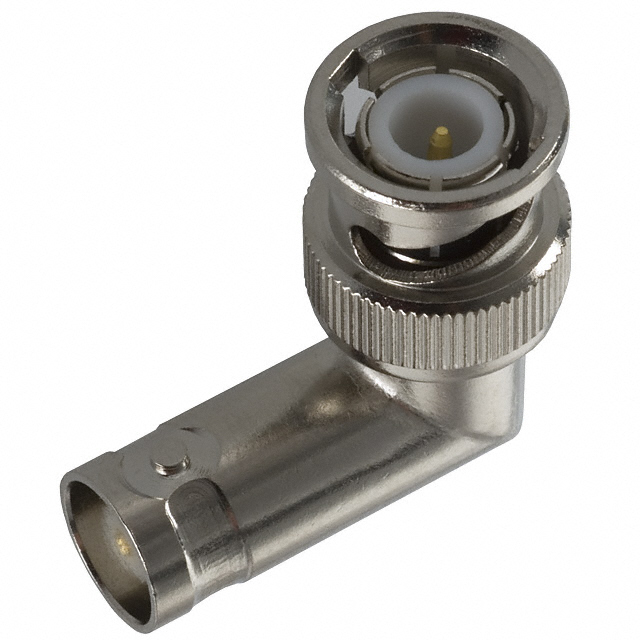

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3534 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3534 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3534 |
|---|---|
| Manufacturer | Pomona Electronics |
| Description | CONN ADAPT PLUG TO JACK BNC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.622 | $4.391 | $4.16 | $3.975 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3534 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN ADAPT PLUG TO JACK BNC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9935 pcs | Data sheet | 3534 |
| Category | Connectors, Interconnects | Style | Right Angle |
| Series | - | Packaging | Bulk |
| Other Names | 501-1136 5935010945119 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Features | - |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohm | Convert To (Adapter End) | BNC Jack, Female Socket |
| Convert From (Adapter End) | BNC Plug, Male Pin | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | - | Adapter Type | Plug to Jack |
| Adapter Series | BNC to BNC |
