3045512

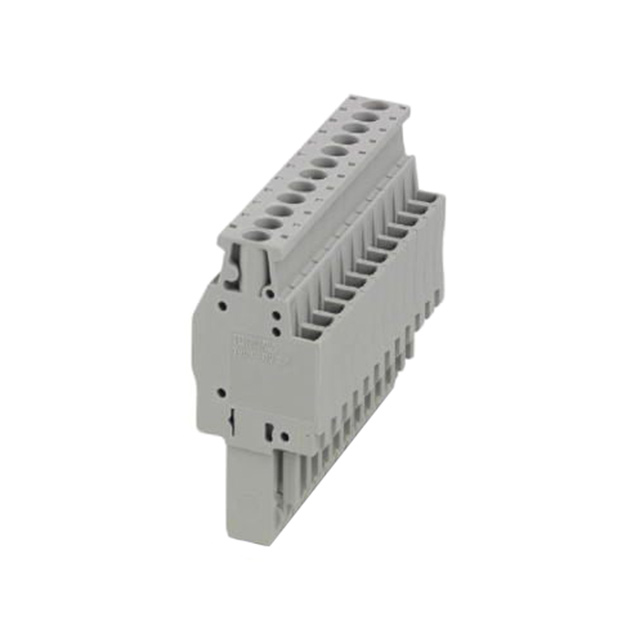

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3045512 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3045512 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3045512 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 12POS 90DEG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $5.024 | $4.694 | $4.318 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.99 | $3.802 | $3.567 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3045512 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS 90DEG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8528 pcs | Data sheet | 30455123045512 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 9mm |
| Wire Gauge or Range - mm² | 0.14-4mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw | Series | CLIPLINE COMBI UPBV |
| Screw Size | M3 | Positions Per Level | 12 |
| Plug Wire Entry | 90° | Pitch | - |
| Packaging | Bulk | Other Names | 277-15140 3045512-ND UPBV 2 5/12 |
| Operating Temperature | - | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.850" (47.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 12 Position Terminal Block Plug, Female Sockets 90° Free Hanging (In-Line) |
| Current - UL | 20A | Current - IEC | 24A |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Gray |
