Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > 2949389

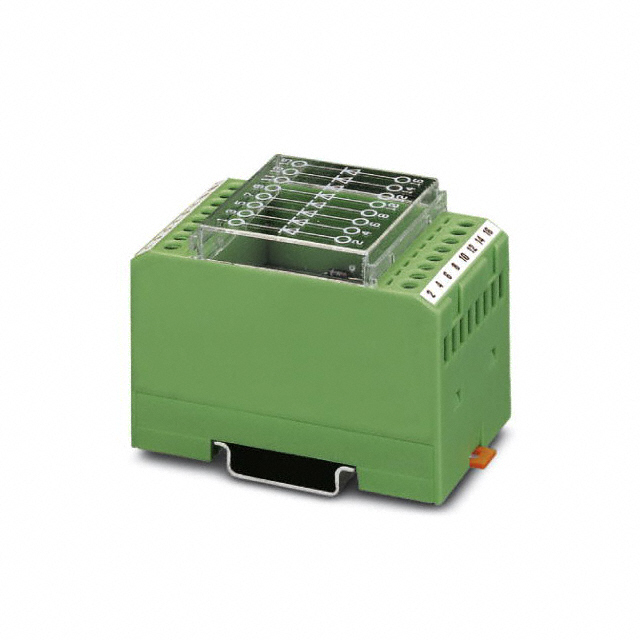

2949389

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2949389 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2949389
Manufacturer	Phoenix Contact
Description	DIODE MODULE 1KV 1.5A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1414 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs
Reference Price (In US Dollars)	$31.48	$28.962	$26.759

Product parameter
Data sheet

Product parameter

Part Number	2949389	Manufacturer	Phoenix Contact
Description	DIODE MODULE 1KV 1.5A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1414 pcs	Data sheet	2949389 2949389 Datasheet
Category	Discrete Semiconductor Products	Voltage - DC Reverse (Vr) (Max)	1000V
Supplier Device Package	Module	Speed	Standard Recovery >500ns, > 200mA (Io)
Series	-	Packaging	Bulk
Package / Case	Housed Axial	Other Names	277-5192 2949389-ND EMG45-DIO8E-1N5408
Operating Temperature - Junction	-20°C ~ 50°C	Mounting Type	DIN Rail
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Diode Configuration	8 Independent
Detailed Description	Diode Array 8 Independent Standard 1000V 1.5A DIN Rail Housed Axial	Current - Reverse Leakage @ Vr	10µA @ 1000V
Current - Average Rectified (Io) (per Diode)	1.5A
