2201788

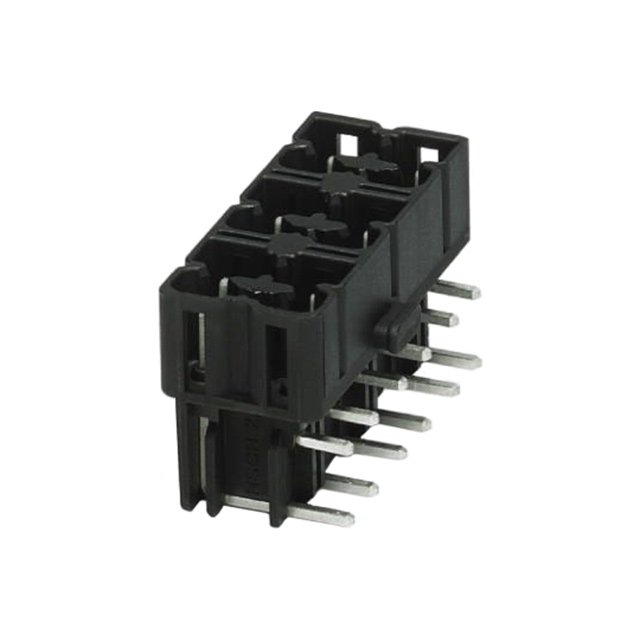

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2201788 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2201788 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2201788 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 12POS 90DEG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.981 | $2.899 | $2.71 | $2.493 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.303 | $2.195 | $2.059 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2201788 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 90DEG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14669 pcs | Data sheet | ME-IO 18,82201788 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 600V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON HSCH | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | - |
| Pitch | - | Packaging | Bulk |
| Other Names | 2201788-ND 277-14553 HSCH 2 5-3U/12 9005 |
Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 2 |
| Mounting Type | Board Edge, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 90°, Right Angle Board Edge, Through Hole | Current - IEC | 8A |
| Contact Tail Length | 0.150" (3.81mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
