1970870

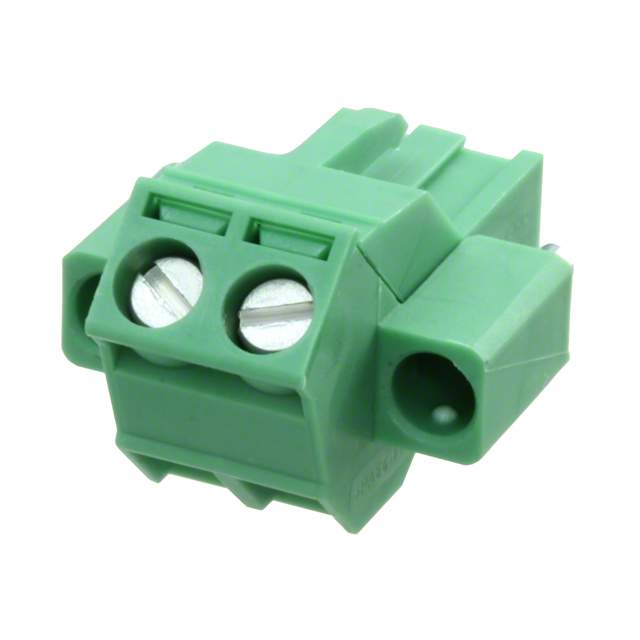

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1970870 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1970870 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1970870 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 2POS 45DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.974 | $0.947 | $0.885 | $0.814 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.752 | $0.717 | $0.673 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1970870 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 45DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53746 pcs | Data sheet | 1970870 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON SMSTB |
| Screw Size | M3 | Positions Per Level | 2 |
| Plug Wire Entry | 45° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1970870-ND 277-14488 SMSTB2,5/2-STF SMSTB252STF |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.610" (15.49mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 45° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
