1969425

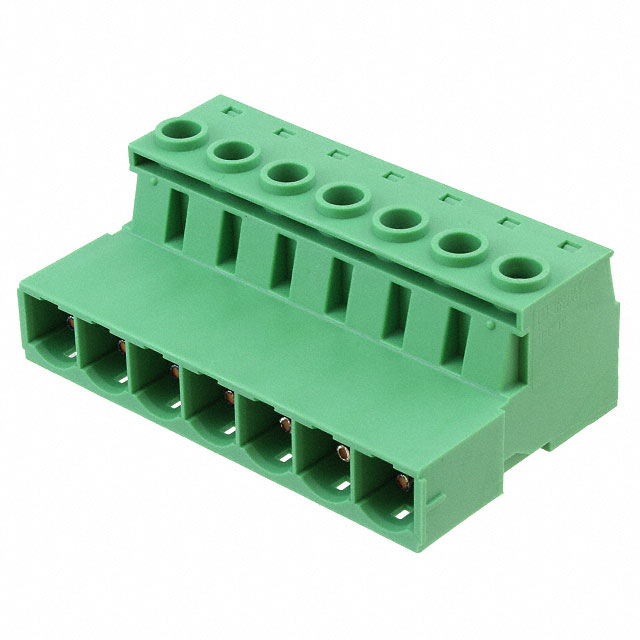

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1969425 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1969425 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1969425 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 7POS STR 10.16MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $12.574 | $12.232 | $11.432 | $10.517 | $9.717 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1969425 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 7POS STR 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4014 pcs | Data sheet | 1969425 |
| Category | Connectors, Interconnects | Wire Strip Length | 12mm |
| Wire Gauge or Range - mm² | 0.75-16mm² | Wire Gauge or Range - AWG | 6-20 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1kV |
| Type | Plug, Male Pins | Torque - Screw | 1.7-1.8 Nm (15-15.9 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON IPC |
| Screw Size | M4 | Positions Per Level | 7 |
| Plug Wire Entry | 180° | Pitch | 0.400" (10.16mm) |
| Packaging | Bulk | Other Names | 1969425-ND 277-9130 IPC 16/ 7-ST-10.16 IPC16/7-ST-10.16 |
| Operating Temperature | - | Number of Positions | 7 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.094" (27.80mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 7 Position Terminal Block Plug, Male Pins 0.400" (10.16mm) 180° Free Hanging (In-Line) |
| Current - UL | 55A | Current - IEC | 76A |
| Contact Tail Length | - | Contact Mating Finish | Silver |
| Contact Material | - | Color | Green |
