1953855

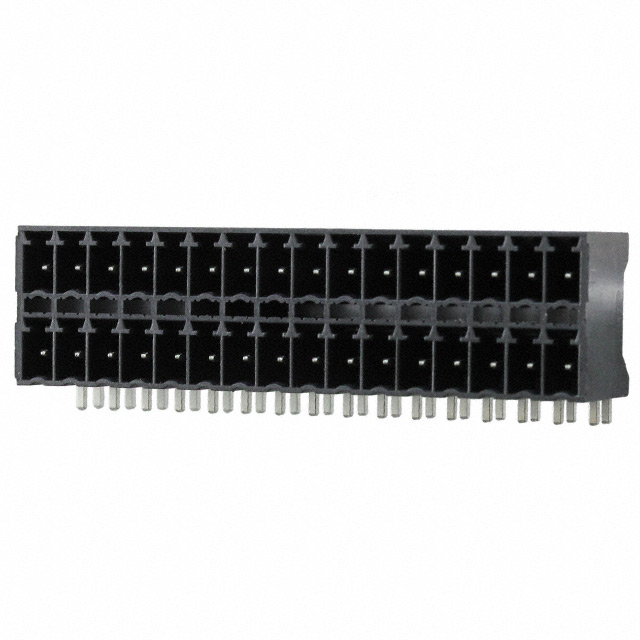

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1953855 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1953855 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1953855 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 32POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $5.961 | $5.796 | $5.417 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.984 | $4.604 | $4.388 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1953855 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 32POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7778 pcs | Data sheet | 1953855 DatasheetMINI COMBICON Double-Level Headers |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MCDN |
| Screw Size | - | Positions Per Level | 16 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1953855-ND 277-14458 MCDN 1,5/16-G1-3,5 P26THR MCDN1,5/16-G1-3,5P26THR |
| Operating Temperature | - | Number of Positions | 32 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.598" (15.19mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 32 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 8A | Current - IEC | 8A per Position |
| Contact Tail Length | 0.102" (2.60mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
