1952487

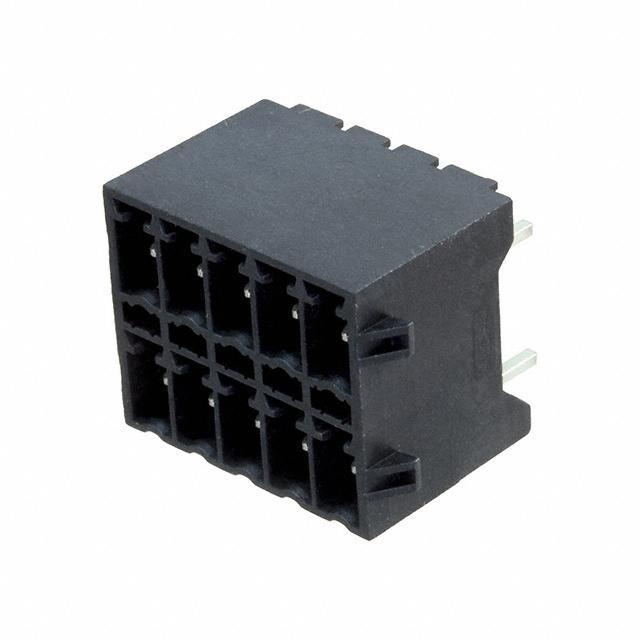

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1952487 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1952487 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1952487 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 10POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.177 | $2.117 | $1.978 | $1.82 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.681 | $1.602 | $1.503 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1952487 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24769 pcs | Data sheet | MINI COMBICON Double-Level Headers1952487 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MCDNV |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1952487-ND 277-14453 MCDNV1,5/5-G1-3,5RNP26THR MCDNV155G135RNP26THR |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.524" (13.30mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | Vertical |
| Features | Locking Ramp | Detailed Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 8A | Current - IEC | 8A per Position |
| Contact Tail Length | 0.102" (2.60mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
