1945274

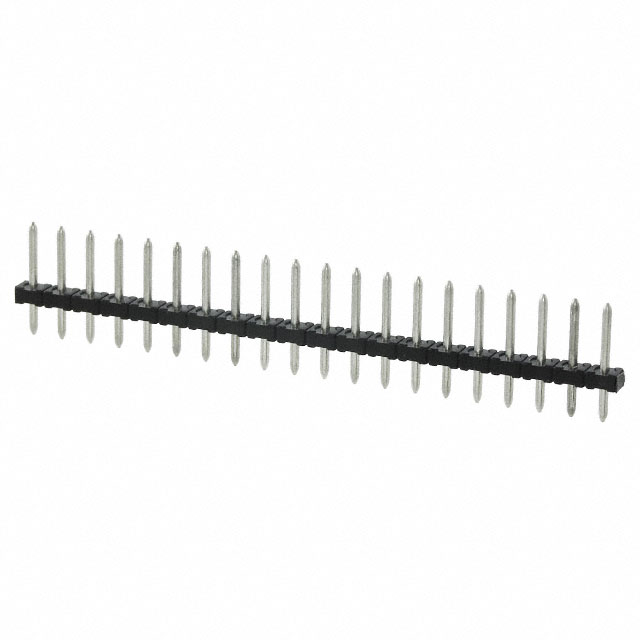

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1945274 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1945274 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1945274 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 20POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.526 | $0.512 | $0.479 | $0.441 | $0.407 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1945274 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 20POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76199 pcs | Data sheet | 19452741945274 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Unshrouded | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON PST |
| Screw Size | - | Positions Per Level | 20 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1945274-ND 277-14448 PST 1 0/20-3 5 |
| Operating Temperature | - | Number of Positions | 20 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.512" (13.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Unshrouded 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 10A | Current - IEC | 8A |
| Contact Tail Length | 0.150" (3.81mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
