1863084

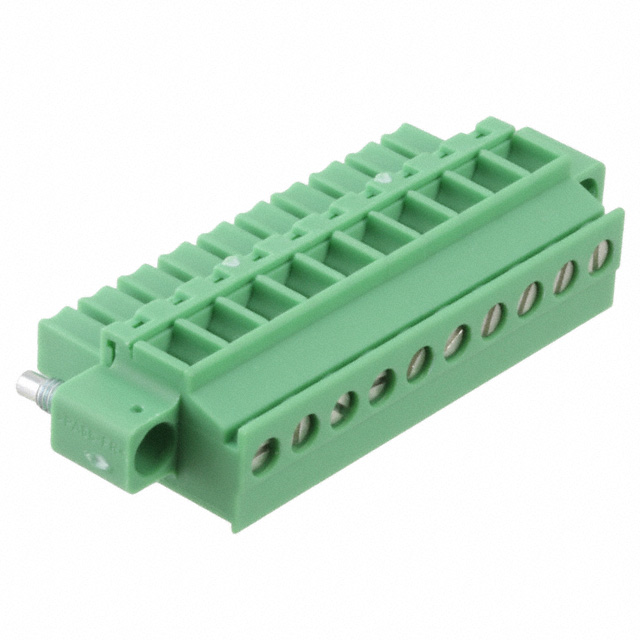

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1863084 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1863084 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1863084 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 10POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.18 | $4.064 | $3.799 | $3.495 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.229 | $3.077 | $2.887 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1863084 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 10POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13230 pcs | Data sheet | 1863084 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.14-1.5mm² | Wire Gauge or Range - AWG | 14-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON MCVW |
| Screw Size | M2 | Positions Per Level | 10 |
| Plug Wire Entry | 270° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1863084-ND 277-14247 MCVW1.5/10-STF-3.5 MCVW1510STF35 |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.752" (19.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
