1859548

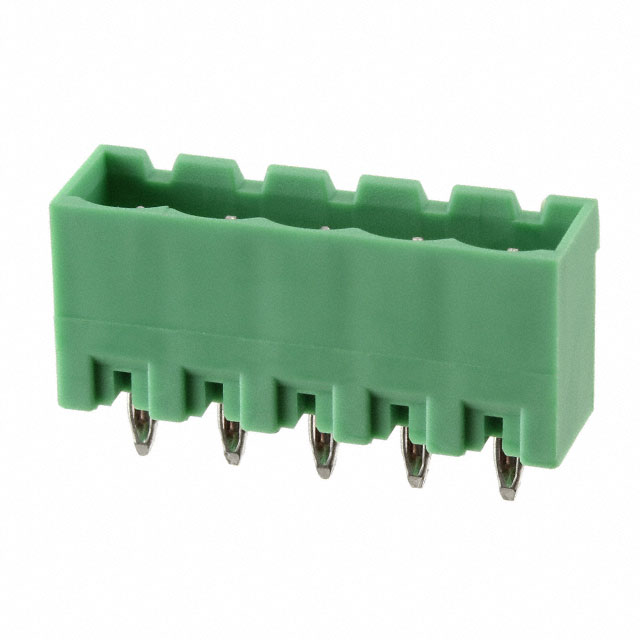

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1859548 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1859548 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1859548 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 5POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.105 | $1.075 | $1.004 | $0.924 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.854 | $0.813 | $0.763 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1859548 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40625 pcs | Data sheet | 1859548 Datasheet1859548 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Press-Fit | Series | COMBICON EMSTBVA |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 277-1298 EMSTBVA 2,5/5-G-5,08 EMSTBVA2,5/5-G-5,08 |
| Operating Temperature | - | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | Vertical |
| Features | - | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 12A | Current - IEC | 12A |
| Contact Tail Length | 0.154" (3.90mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
