1843826

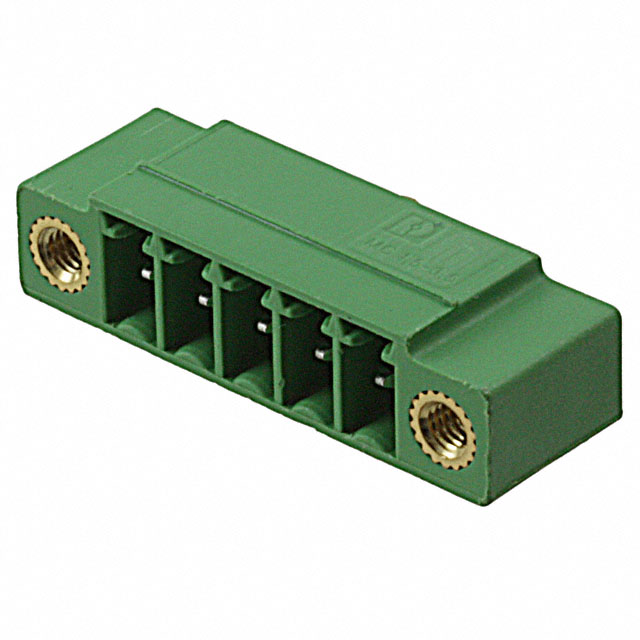

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1843826 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1843826 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1843826 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 5POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.417 | $1.357 | $1.298 | $1.262 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.18 | $1.085 | $1.003 | $0.956 | ||
- Product parameter
Product parameter
| Part Number | 1843826 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33063 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MC |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1843826-ND 277-6376 MC 1,5/ 5-GF-3,5 MC1,5/5-GF-3,5 |
| Operating Temperature | - | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.285" (7.25mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | Mating and Mounting Flange | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | 0.134" (3.40mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
