1837420

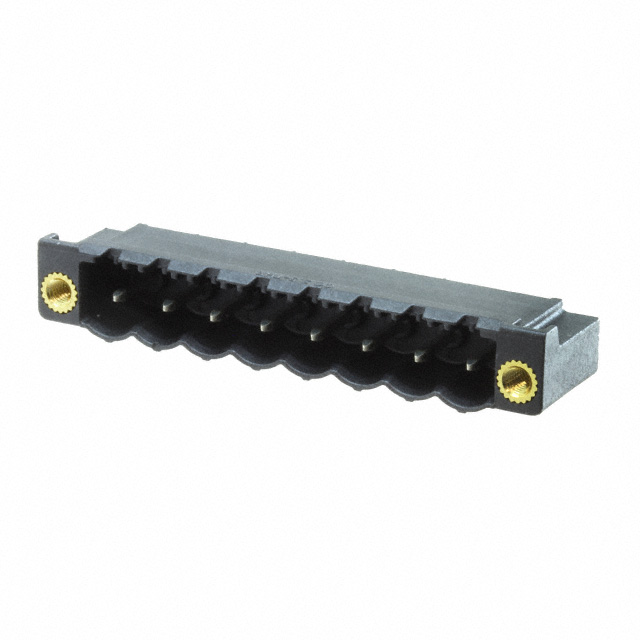

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1837420 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1837420 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1837420 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 8POS BLK |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.682 | $3.241 | $3.057 | $2.91 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.855 | $2.486 | $2.394 | $2.302 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1837420 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS BLK | Lead Free Status / RoHS Status | |
| Quantity Available | 14416 pcs | Data sheet | 1837420 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON CCV | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1837420-ND 277-16356 CCV 2 5/ 8-GF-LR P20 THR |
Operating Temperature | -40°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 4 Weeks | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | Vertical | Features | Mating Flange |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 16A |
| Current - IEC | 12A | Contact Tail Length | 0.079" (2.00mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
