1826429

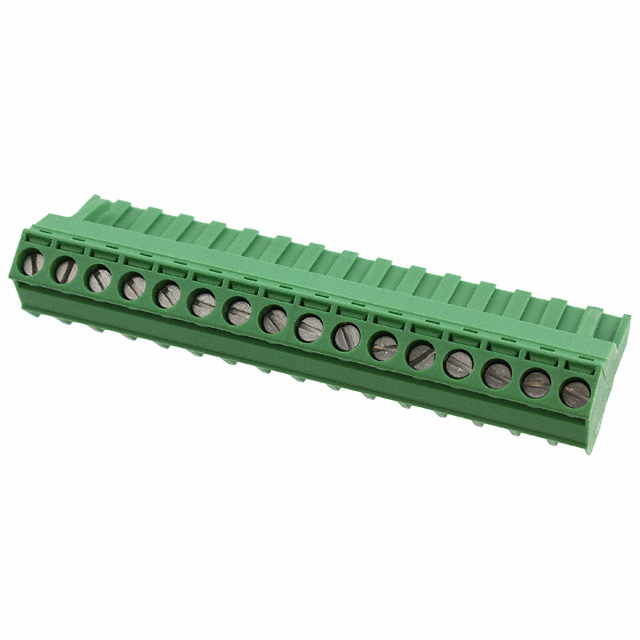

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1826429 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1826429 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1826429 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 16POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $7.198 | $7.002 | $6.544 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.021 | $5.562 | $5.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1826429 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 16POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6151 pcs | Data sheet | 1826429 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON SMSTB |
| Screw Size | M3 | Positions Per Level | 16 |
| Plug Wire Entry | 225° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1826429-ND 277-8834 SMSTB 2,5/16-ST-5,08 SMSTB2,5/16-ST-5,08 |
| Operating Temperature | - | Number of Positions | 16 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.610" (15.49mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 16 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 225° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
