1815196

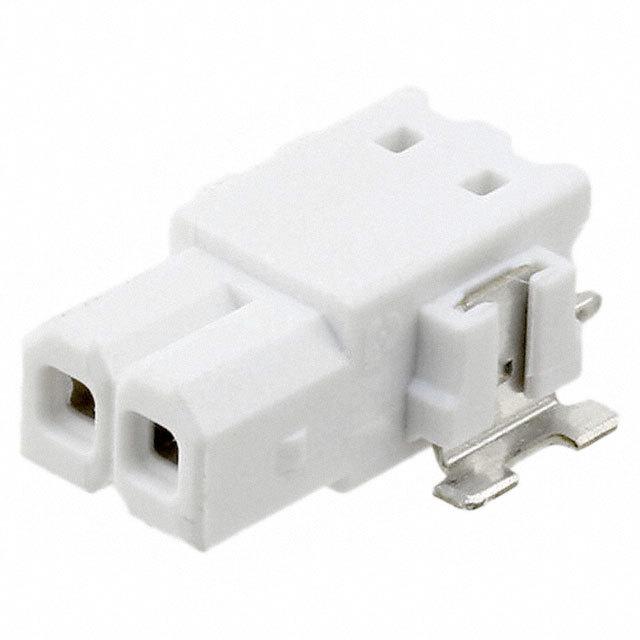

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1815196 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1815196 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1815196 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN HEADER 2POS 2.5MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | ||
|---|---|---|---|---|---|
| $0.211 | $0.194 | $0.179 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1815196 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN HEADER 2POS 2.5MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109401 pcs | Data sheet | 1815196 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 150V | Termination | Solder |
| Style | Board to Cable/Wire | Series | COMBICON PTSM |
| Pitch | 0.098" (2.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1815196-ND 277-9977-2 PTSM 0 5/ 2-HHI0-2 5-SMD WHR24 PTSM0,5/2-HHI0-2,5-SMDWHR24 PTSM052HHI025SMDWHR24 |
Operating Temperature | - |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Housing Color | White | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | SSL Connector 2 Position Header, Female Sockets Board to Cable/Wire 0.098" (2.50mm) Solder |
| Current Rating | 5A | Contact Material | - |
| Contact Finish | Tin | Connector Type | Header, Female Sockets |
