1805630

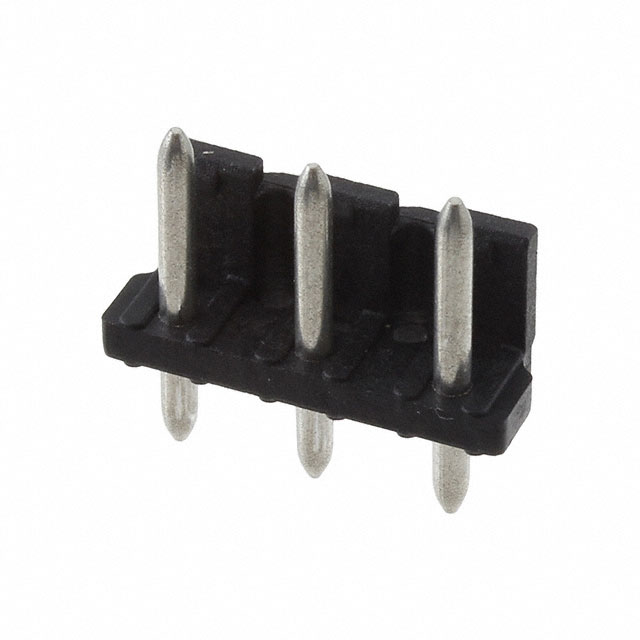

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1805630 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1805630 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1805630 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 3POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.126 | $0.12 | $0.115 | $0.112 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.104 | $0.096 | $0.089 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1805630 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 263210 pcs | Data sheet | 1805630 Datasheet1805630 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 600V | Type | Header, Male Pins, Partial Shroud |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON PST | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1805630-ND 277-14082 PST 1 3/ 3-5 0-SF |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole | Current - IEC | 12A |
| Contact Tail Length | 0.142" (3.60mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
