1805546

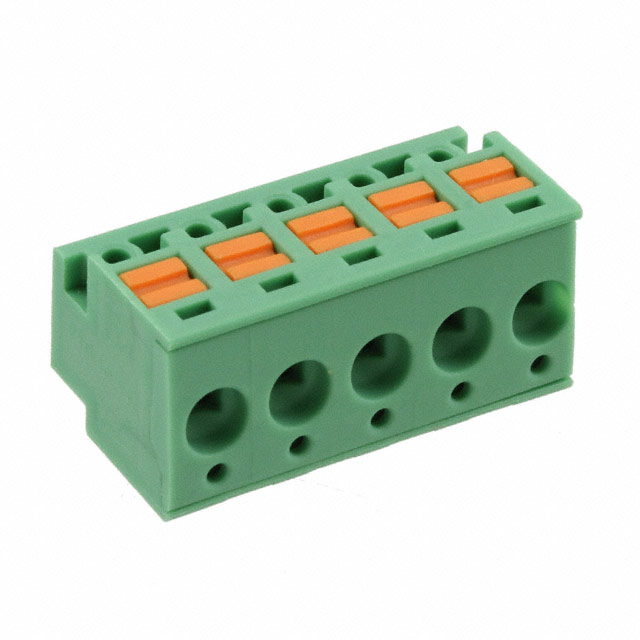

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1805546 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1805546 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1805546 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 5POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.444 | $0.424 | $0.412 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.385 | $0.355 | $0.328 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1805546 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 5POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68671 pcs | Data sheet | 1805546 Datasheet1805546 |
| Category | Connectors, Interconnects | Wire Strip Length | 8mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 14-26 AWG |
| Voltage - IEC | 600V | Type | Plug for Unshrouded Header |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | COMBICON PTS | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1805546-ND 277-14078 PTS 1 5/ 5-PH-5 0 |
Operating Temperature | - |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.461" (11.70mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 5 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - IEC | 10A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
