1804755

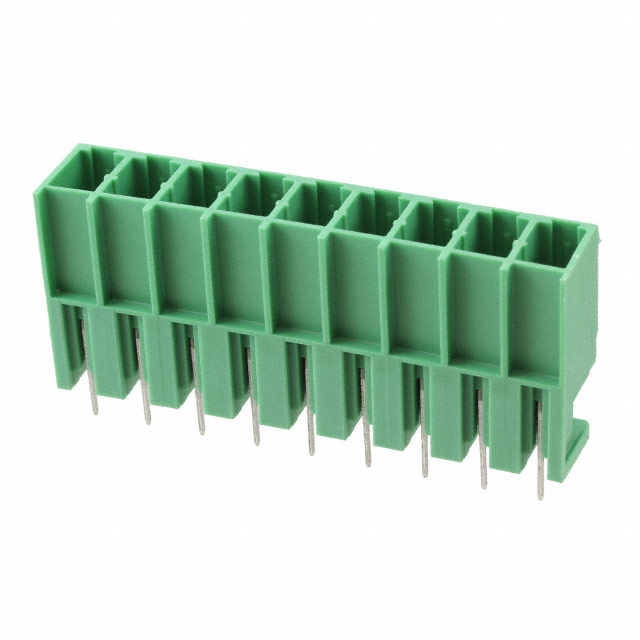

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1804755 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1804755 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1804755 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 9POS VERT 7.62MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $5.193 | $5.05 | $4.72 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.342 | $4.012 | $3.823 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1804755 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 9POS VERT 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9200 pcs | Data sheet | 1804755 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON PCV |
| Screw Size | - | Positions Per Level | 9 |
| Plug Wire Entry | - | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 1804755-ND 277-14071 PCV 4/ 9-G-7,62 PCV4/9-G-7,62 |
| Operating Temperature | - | Number of Positions | 9 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.142" (29.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole |
| Current - UL | 20A | Current - IEC | 20A |
| Contact Tail Length | 0.197" (5.00mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
