1792647

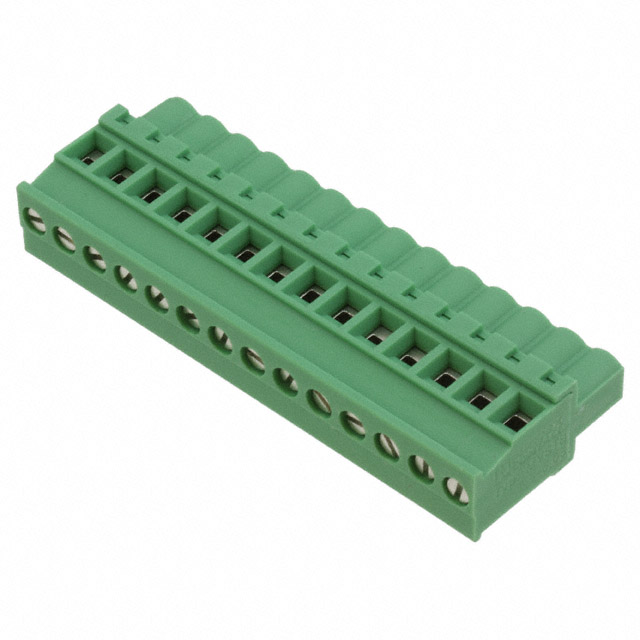

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1792647 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1792647 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1792647 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 14POS 270DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $5.361 | $5.214 | $4.873 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.483 | $4.142 | $3.947 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1792647 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 14POS 270DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8107 pcs | Data sheet | 1792647 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON MVSTBW |
| Screw Size | M3 | Positions Per Level | 14 |
| Plug Wire Entry | 270° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1792647-ND 277-12349 MVSTBW 2,5/14-ST MVSTBW2,5/14-ST |
| Operating Temperature | - | Number of Positions | 14 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.496" (12.60mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 14 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
