1787548

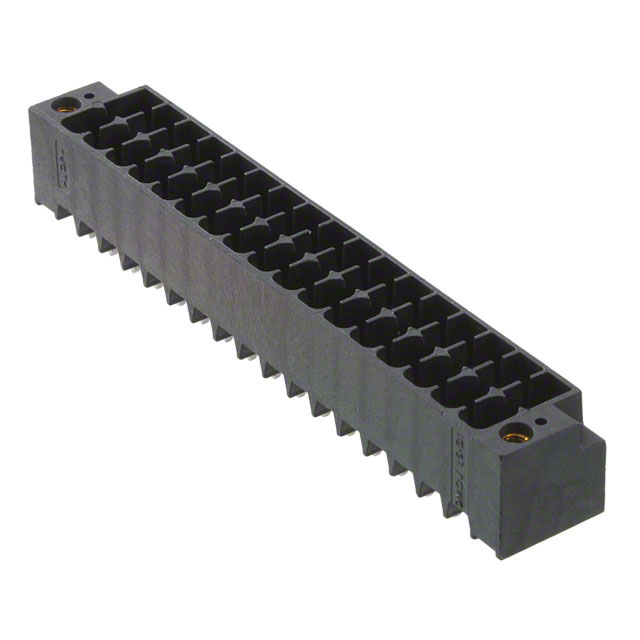

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1787548 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1787548 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1787548 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 34POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.278 | $4.161 | $3.888 | $3.577 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.305 | $3.15 | $2.955 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1787548 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 34POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11712 pcs | Data sheet | 1787548 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON DMCV |
| Screw Size | - | Positions Per Level | 17 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1787548-ND 277-8771 DMCV1,5/17-G1F-3,5-LRP20THR DMCV1517G1F35LRP20THR |
| Operating Temperature | - | Number of Positions | 34 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.394" (10.00mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | Vertical | Features | Mating and Mounting Flange |
| Detailed Description | 34 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | 0.079" (2.00mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
