1786543

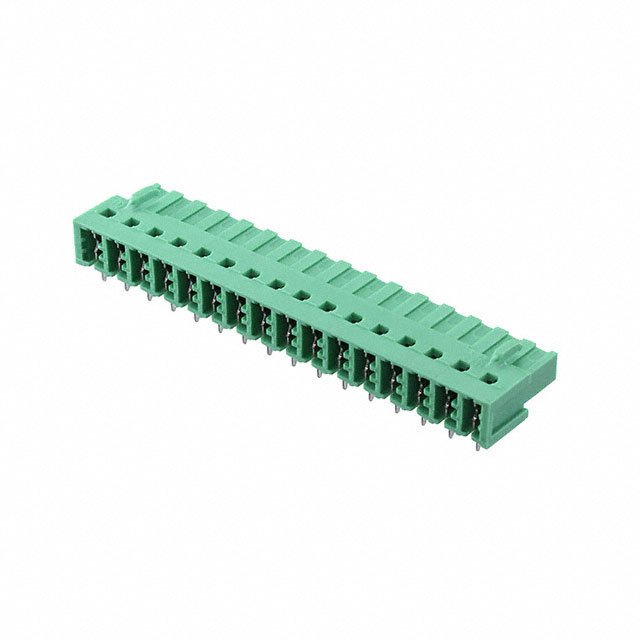

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1786543 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1786543 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1786543 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 16POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $6.225 | $6.057 | $5.66 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.208 | $4.811 | $4.585 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1786543 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7083 pcs | Data sheet | 1786543 Datasheet1786543 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Header, Female Sockets | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON IC |
| Screw Size | - | Positions Per Level | 16 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1786543-ND 277-14020 IC 2,5/16-G-5,08 IC2,5/16-G-5,08 |
| Operating Temperature | - | Number of Positions | 16 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.402" (10.20mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | Retention Latches | Detailed Description | 16 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | 12A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
