1786242

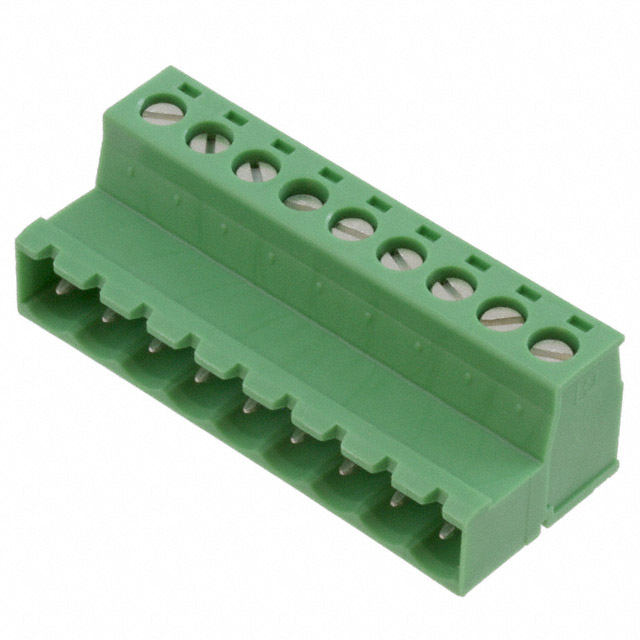

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1786242 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1786242 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1786242 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 9POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.824 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1786242 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 9POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7746 pcs | Data sheet | 1786242 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug, Male Pins | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON IC |
| Screw Size | M3 | Positions Per Level | 9 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1786242-ND 277-6186 IC 2,5/ 9-ST-5,08 IC2,5/9-ST-5,08 |
| Operating Temperature | - | Number of Positions | 9 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 9 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
