1778829

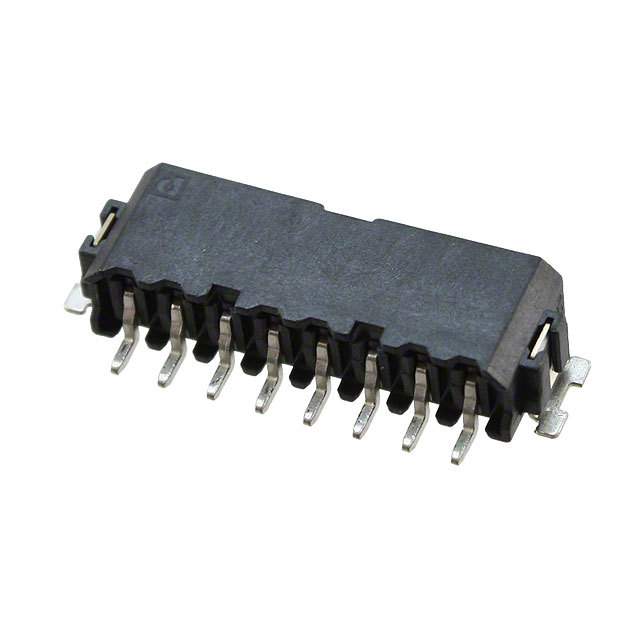

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1778829 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1778829 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1778829 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 8POS 90DEG 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.902 | $0.834 | $0.764 | $0.744 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1778829 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS 90DEG 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52943 pcs | Data sheet | 1778829 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 160V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON PTSM | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.098" (2.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 277-2321-1 | Operating Temperature | - |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.197" (5.00mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | 90°, Right Angle | Features | Board Guide, Pick and Place Cap, Solder Retention |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Surface Mount | Current - IEC | 6A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
